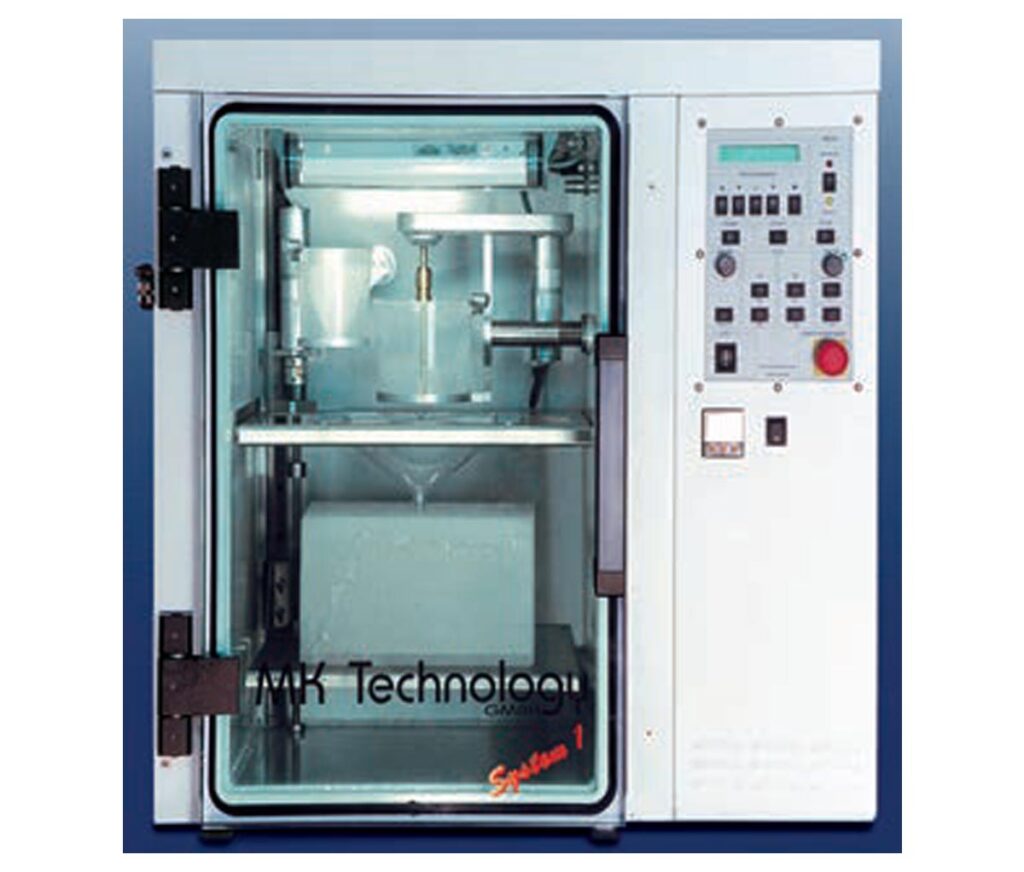

The innovative technology for making silicon molds and functional prototypes from a master model within only one day – at only a fraction of the usual costs
| TECHNICAL DATA | |
|---|---|
| Maximal casting weight | 1,400 g |

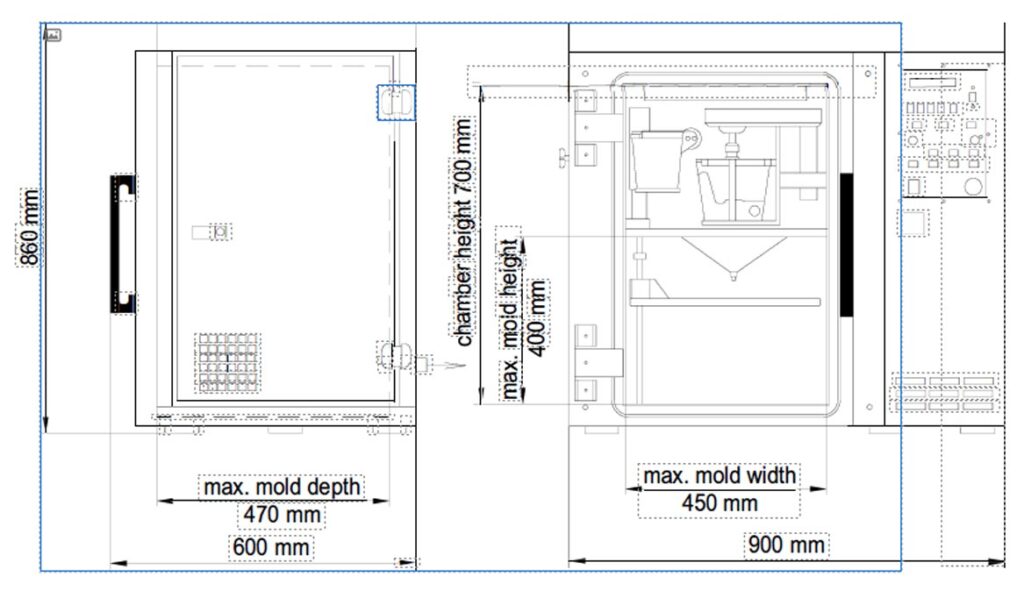

| Maximal mold size (W x D x H) | 450 x 470 x 400 mm |
| Chamber interior size (W x D x H) | 450 x 470 x 700 mm |
| Chamber exterior size (W x D x H) | 900 x 600 x 860 mm |
| Vacuum power of the pump | 25 m³/h / ≤0.5 mbar |
| Evacuation time 1,013 → 0 hPa | 3 min |
| Leak time | 35 sec |
| Voltage | 230 V / 50 Hz |
| Power | 1.2 kW |
| Weight | 330 kg |
