High Speed Shell Drying -The Fast and Smart Technology for Rapid Investment Casting
Conventional shell drying with water based slurries takes a long time and because the evaporative chill effect causes a temperature drift and stress inside the shell, there is always a risk of cracks. The MK high speed drying technology solves these problems automatically. Thus the quality of the shell is better and shell building time is reduced dramatically.
ADVANTAGES AT A GLANCE
- Extremely fast – shell production in a few hours
- Superb shell and surface quality
- Reduced shell cracks
- Works well for all geometries including deep pockets and holes
- No postcuring required
- Simple and intuitive operation
HIGH SPEED SHELL DRYING

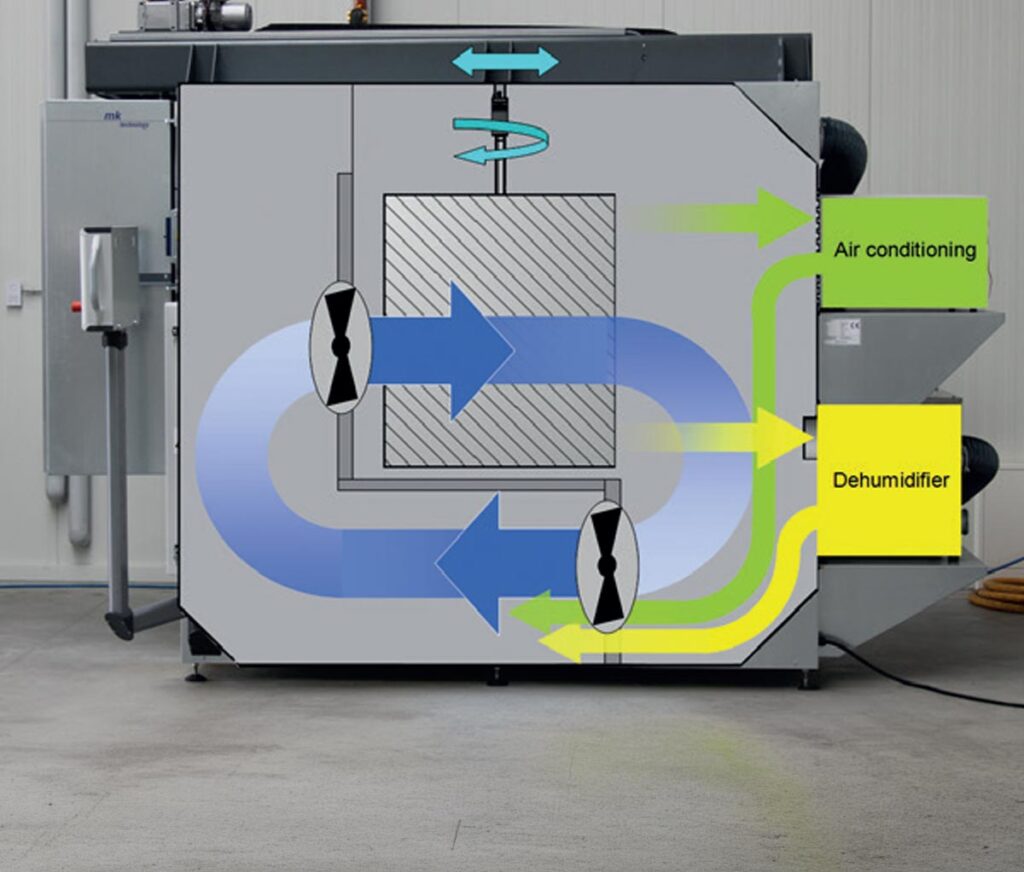

- High speed and very turbulent wind takes the moisture out of the shell.
- Infrared light, controlled by two sophisticated sensor systems, neutralizes the chill effect and keeps the shell temperature stable within a
- range of ± 1 °C. The absolute temperature is limited to 25 °C (77 °F).
- Due to the energy of the IR radiation the internal bonding is better and the shell becomes stronger.

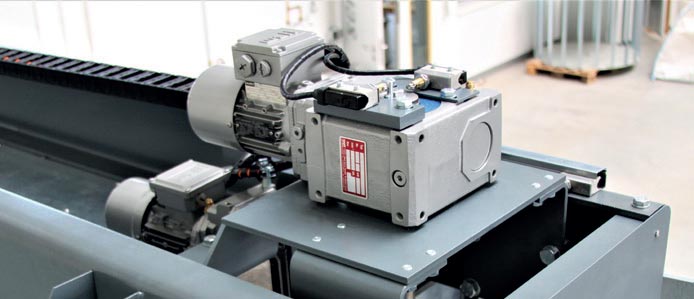

- The complete shell rotates continuously, which leads to a very gentle, equal and stress-free drying.
