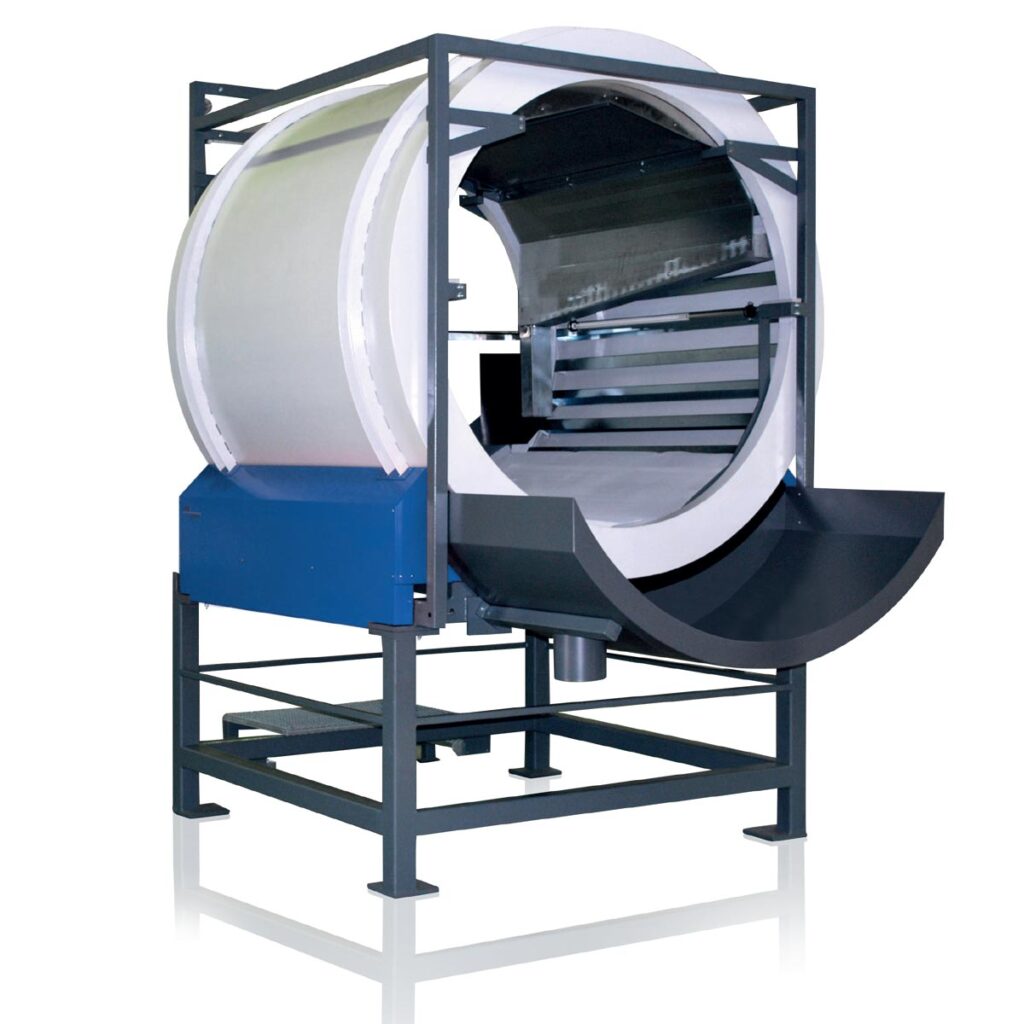

By means of adjustable shovels inside the drum the sand is continuously conveyed upwards from where it rains down through a riddle screen. In the lower segment there is a plastic sieve which separates impurities, and counteracts a formation of dust.
The different setting options, such as rotary speed of the drum, jogging frequency and trajectory allow an absolutely homogenous sanding with fine sand as well as with very coarse sand. A newly developed exhaust system reduces the dust formation.
THE ADVANTAGES
- Absolutely homogenous sanding
- Adjustable to different sands
- Very effective and adjustable double dust exhaustion
- High lifetime due to eight heavy duty bearings and a maintenance-friendly overall construction
- Easy, quick an cost-efficient exchange of the lower dirt sieve
- Bright illumination
| MK TECHNOLOGY® SA SERIES SANDERS | ||||
|---|---|---|---|---|
| Specification | MK-SA 120 | MK-SA 160 | MK-SA 200 | MK-SA 220 |
| Shell dimension (mm) | Ø 500 x 500 | Ø 750 x 600 | Ø 1,000 x 700 | Ø 1,300 x 1,000 |
| Submersion angle | 45° | 45° | 45° | 45° |
| Inner diameter (mm) | 1,196 | 1,600 | 1,996 | 2,211 |
| Inner depth (mm) | 750 | 1,200 | 1,590 | 1,989 |
| Exterior size (W x H x D) (mm) | 1,220 x 2,140 x 1,110 | 1,700 x 2,450 x 1,440 | 2,100 x 2,850 x 1,740 | 2,316 x 3,430 x 2,154 |
| Voltage (V / pH) | 400 V AC, 3 pH | 400 V AC, 3 pH | 400 V AC, 3 pH | 400 V AC, 3 pH |
| Power / Fuse (kW / A) | 1 kW, CEE (16 A) | 1 kW, CEE (16 A) | 1 kW, CEE (16 A) | 1 kW, CEE (16 A) |
| Total weight (kg) | 550 | 1,200 | 1,700 | 2,400 |
