The innovative Technology for Rapid Shell Building & Prototyping.

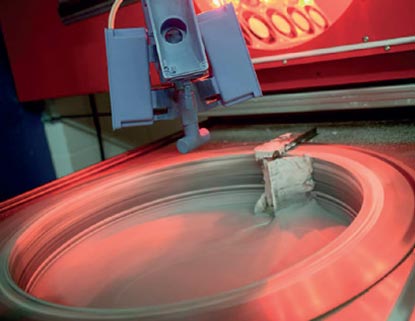

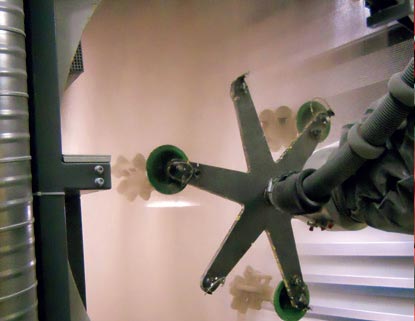

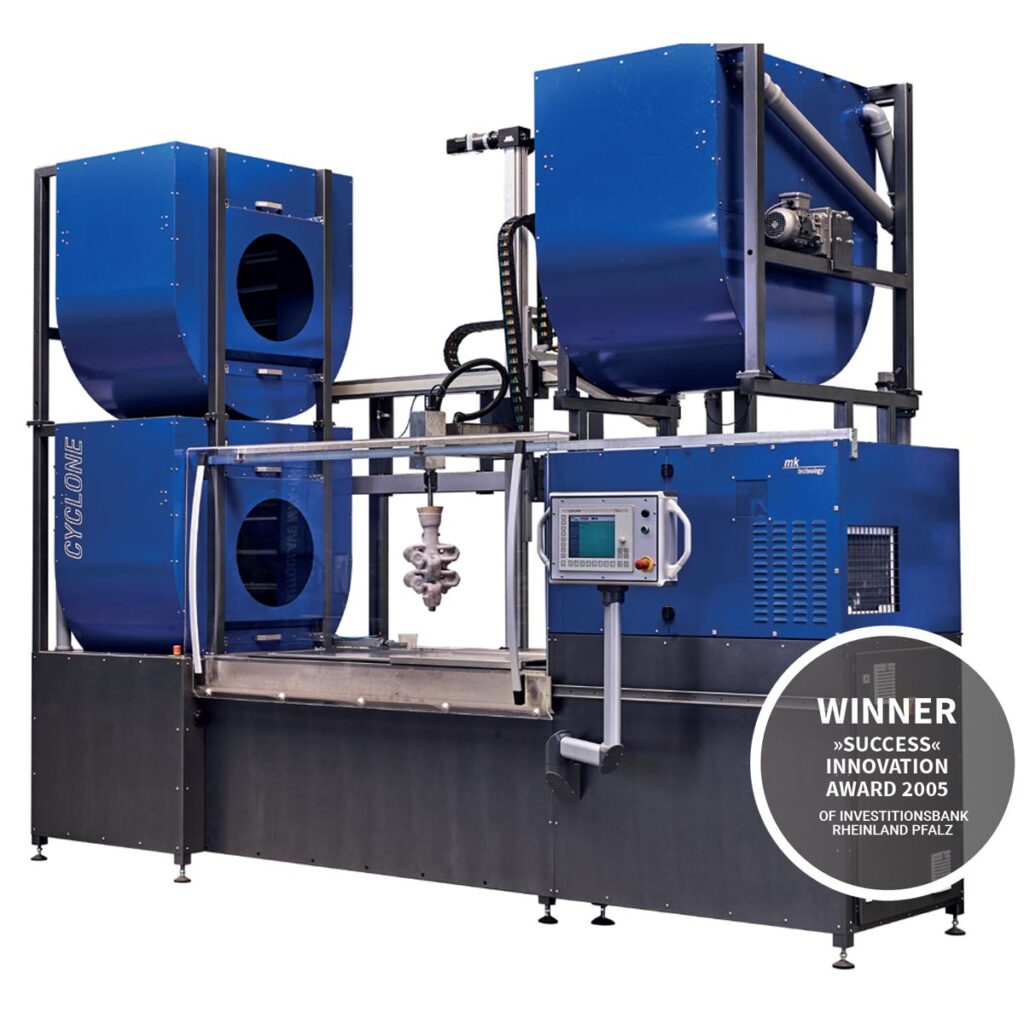

The MK Cyclone is a complete shell building unit requiring very little space. It consists of the rotating slurry tanks, two or three rainfall sanders and the high-speed drying chamber. A linear robot moves the tree from one station to the other and one shell with 7 layers can be produced within 4 hours without any supervision.
MK CYCLONE – ADVANTAGES AT A GLANCE
- Extremely fast – shells produced in a few hours
- Fully automatic – machine can run overnight
- Superb surface quality
- Geometrics with deep pockets and holes are possible.
- The technology works well for all kind of metals.
- The integrated ACs keep the temperature of shelland slurry stable.
THE SYSTEM IS IDEAL FOR
- Rapid Prototyping / Rapid Tooling Services
- Whenever only a few perfect investment cast parts are needed in the shortest possible time.
- To test new materials and gatings
HOW THE TECHNOLOGY WORKS

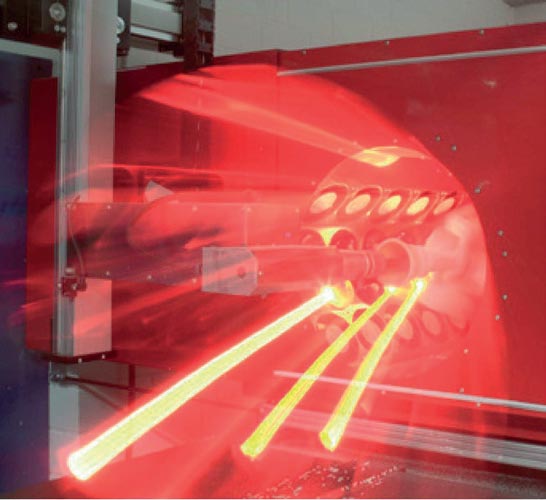

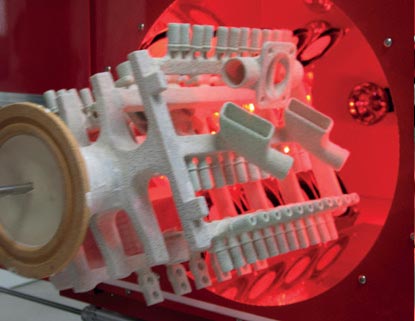

High speed and turbulent air remove moisture. Infrared light compensates the chill effect and keeps the shell temperature stable at ± 1 °C. Mirror inside the chamber reflects the IR light to reach all sections of the shell. Continuous rotation of the tree provides a very gentle and even drying. Pre-dried air additionally accelerates the process.
MK Cyclone: the perfect solution for the fast building of shells for Rapid Prototyping.

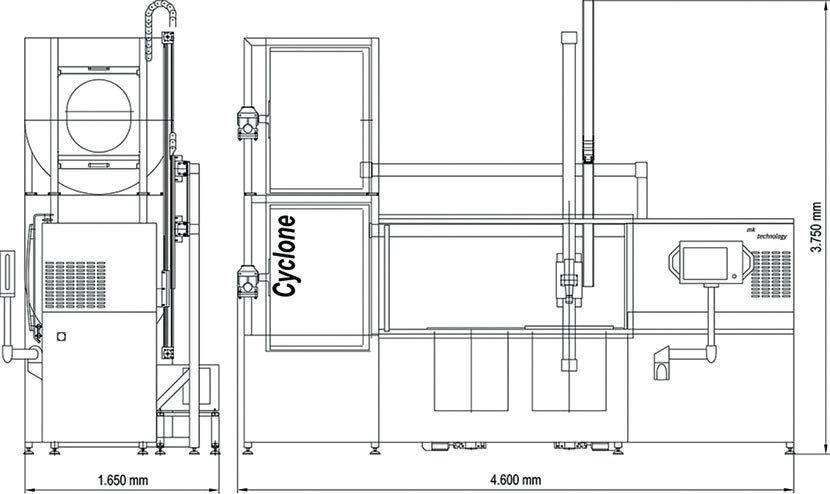

| MK TECHNOLOGY® CYCLONE | ||
|---|---|---|
| Dimensions | SI | US |
| Width | 4,600 mm | 14 ft |
| Depth | 1,650 mm | 5.4 ft |
| Height | 2,300 / 3,950 mm | 7.5 / 12.5 ft |
| Weight | 2,000 / 2,500 kg | 4,410 / 5,510 lbs |
| Voltage | 400 V / 50 Hz | 480 V / 60 Hz |
| Power / Fuse | 15 kW / 32 A | 15 kW / 32 A |
| Max. shell size | Ø 500 x 500 mm | Ø 19.6 x 19.6 in |
| Max. shell weight (incl. wax / ceramic) | 25 kg | 55 lbs |
| Slurry tank volume (each) | 170 ltr | 45 US gal. |
| Max. sand capacity | 35 kg | 77 lbs |
