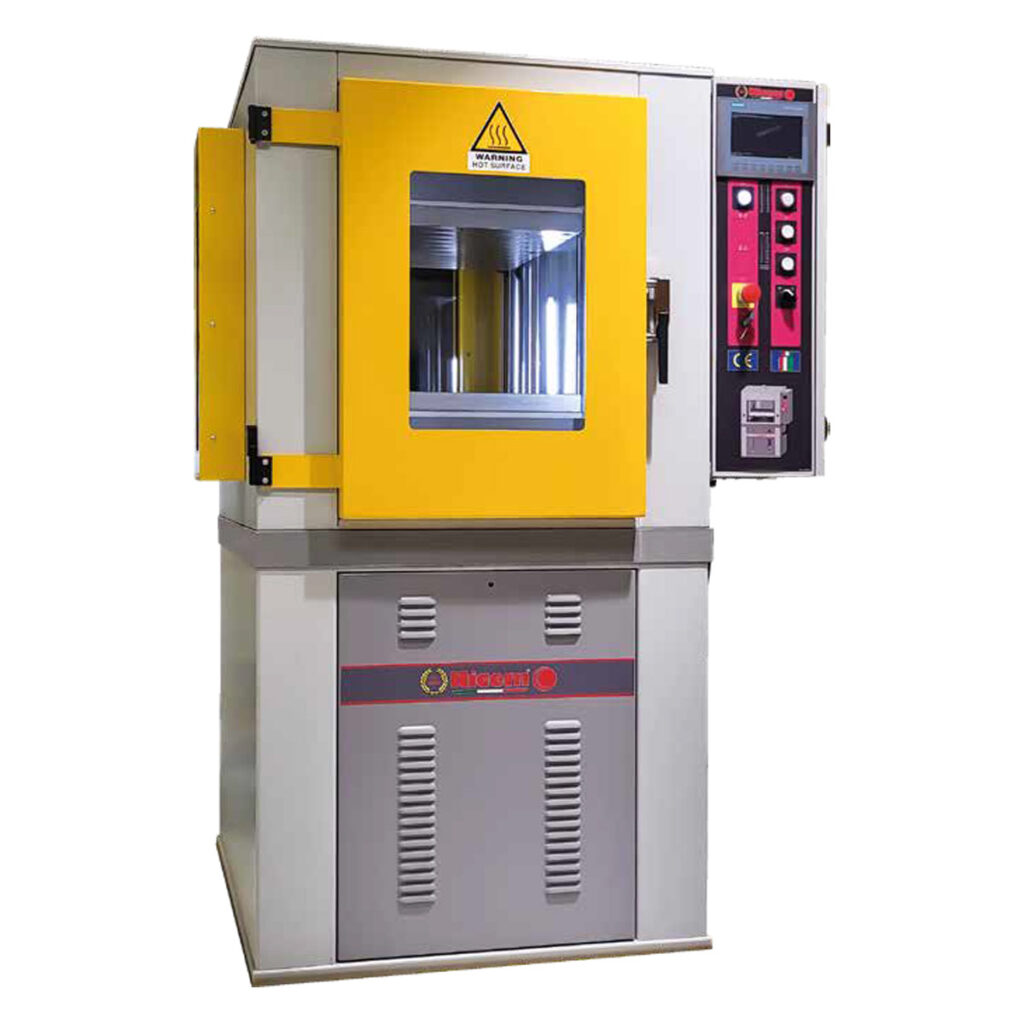

High precision automatic 4-column laboratory press for plastic compounds, composite wood and silicone and organic rubber equipped with plates heated by electric resistances.
Characteristics
- Sturdy steel structure processed by CNC machining centre
- Hydraulic control unit composed of: motor, high pressure pump to maintain the working pressure, low pressure pump for raising and
lowering solenoid valve, pressure switch for automatic pressure regulation - PLC and control panel with touch screen
- Vulcanization cycle timer
- Plate opening adjustment during degassing
- Automatic degassing
- Programmable degassing cycles
- 2 PID thermoregulators to maintain uniform temperature
- Pressure gauge indicating plate closing pressure
- Protection door with safety limit switch: prevents reaching the workplates area
- Cycle start button
- Descent button
- Main switch
- Emergency button
| TECHNICAL DATA | |
|---|---|
| Heating plates dimensions | 500 x 500 mm | 19.6 x 19.6″ |
| Opening between plates | 350 mm | 13.8″ |
| Operating pressure | 250 bar |
| Adjustable temperature | 20 – 200°C | 68 – 392°F |
| Maximum clamping force | 100 TON |
| Power | 9000 W |
| Voltage | 400V Three-phase |
| Frequency | 50 / 60 Hz |
| Dimensions | 1750 x 1200 x 950 mm | 68.9 x 47.2 x 37.4″ |
| Weight | 1560 kg | 3439 lbs |
| Noise output | < 65 dB |
