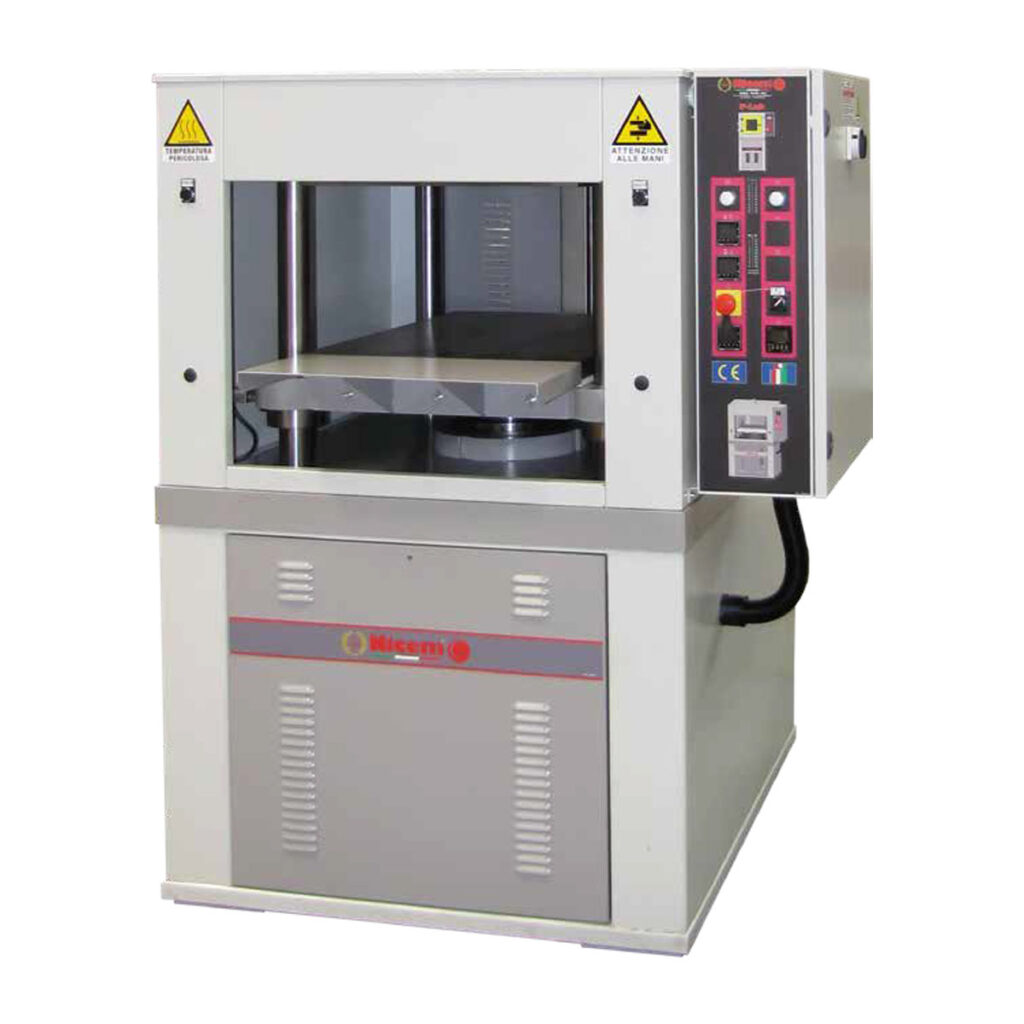

High precision automatic 4-column laboratory press for plastic compounds, composite wood and silicone and organic rubber equipped with plates heated by electric resistances.
Characteristics
- Sturdy steel structure processed by CNC machining centre
- Hydraulic control unit composed of: motor, high pressure pump to maintain the working pressure, low pressure pump for raising and
lowering solenoid valve, pressure switch for automatic pressure regulation - PLC and control panel with touch screen
- Vulcanization cycle timer
- Plate opening adjustment during degassing
- Automatic degassing
- Programmable degassing cycles
- 2 PID thermoregulators to maintain uniform temperature
- Pressure gauge indicating plate closing pressure
- Protection door with safety limit switch: prevents reaching the
workplates area - Cycle start button
- Descent button
- Main switch
- Emergency button
| TECHNICAL DATA | |
|---|---|
| Heating plates dimensions | 600 x 800 mm | 23.6 x 31.5″ |
| Opening between plates | 350 mm | 13.8″ |
| Operating pressure | 250 bar |
| Adjustable temperature | 20 – 200°C | 68 – 392°F |
| Maximum clamping force | 100 TON |
| Power | 9000 W |
| Voltage | 400V Three-phase |
| Frequency | 50 / 60 Hz |
| Dimensions | 1320 x 1100 x 1700 mm | 52 x 43.3 x 66.9″ |
| Weight | 2630 kg | 5798 lbs |
| Noise output | < 65 dB |
