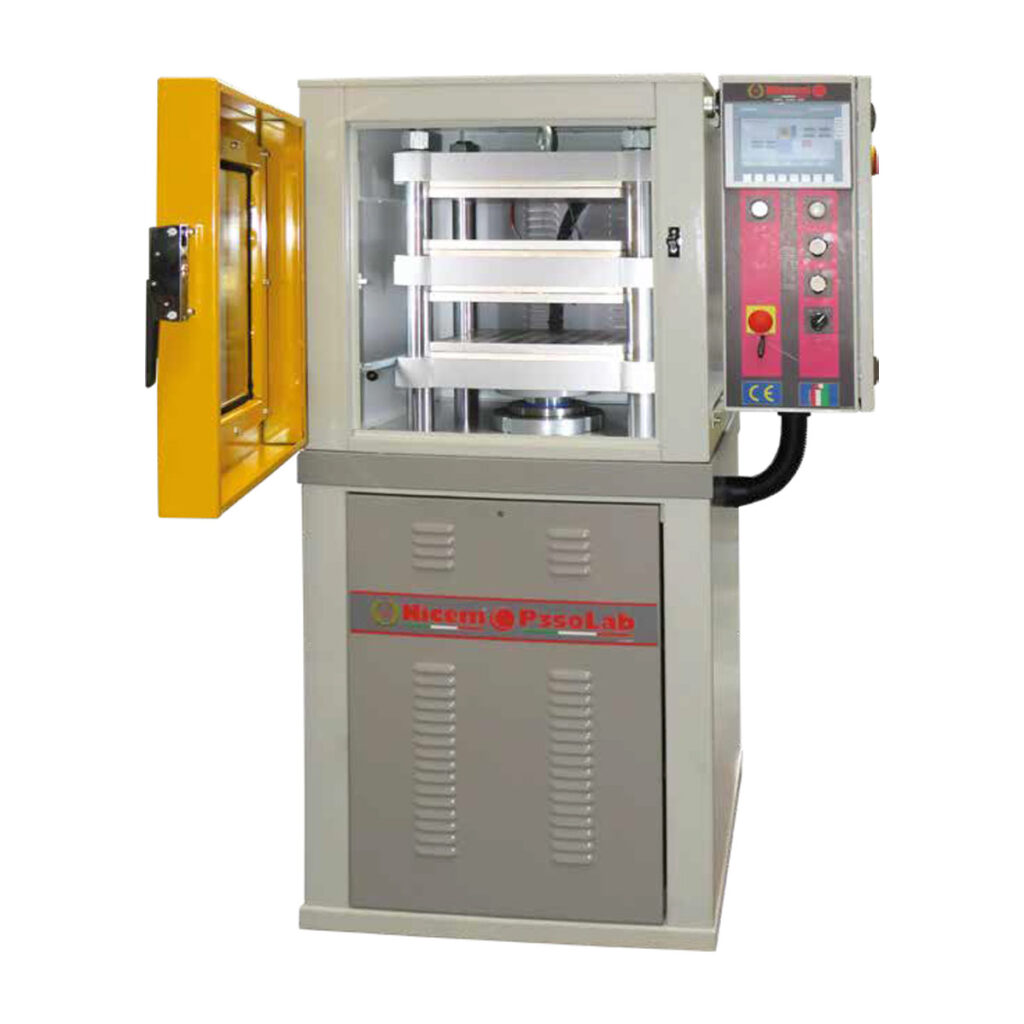

High precision vulcanizing press with double shelf for the production of elastomeric and thermoplastic specimens. It can also be used for the production of industrial gaskets and stamps.
Characteristics
- Sturdy steel structure processed by CNC machining centre
- Hydraulic control unit composed of: motor, high pressure pump to maintain the working pressure, low pressure pump for raising and
lowering solenoid valve, pressure switch for automatic pressure regulation - PLC and control panel with touch screen
- Vulcanization cycle timer
- Plate opening adjustment during degassing
- Automatic degassing
- Programmable degassing cycles
- 2 PID thermoregulators to maintain uniform temperature
- Pressure gauge indicating plate closing pressure
- Protection door with safety limit switch: prevents reaching the workplates area
- Cycle start button
- Descent button
- Main switch
- Emergency button
| TECHNICAL DATA | |
|---|---|
| Heating plates dimensions | 350 x 350 mm | 13.78 x 13.78″ |
| Opening between plates | 100 mm | 3.9″ |
| Operating pressure | 250 bar |
| Adjustable temperature | 20 – 200°C | 68 – 392°F |
| Maximum clamping force | 25 / 40 TON |
| Power | 4500 W |
| Voltage | 400V Three-phase |
| Frequency | 50 / 60 Hz |
| Dimensions | 965 x 740 x 1640 mm | 38 x 29.1 x 54.6″ |
| Weight | 810 kg | 1786 lbs |
| Noise output | < 65 dB |
